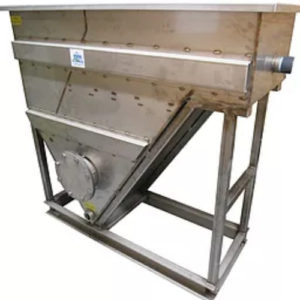

Inclined Plate Clarifiers
PRM manufactures Plate Classifiers for enhanced solids removal from process streams. The raw process water enters the classifier where it is dispersed evenly through the chamber. The collection surface of the plates allows solids to slide downward to the sludge hopper for removal while the clarified effluent exits the unit through the effluent outlet. Plate Classifiers can be used in conjunction with oil water separators or on their own for solids removal.
Features
- Flows up to 100 GPM
- Skid Mounted, Steel Welded Frame
- Stainless Steel Welded Construction
- Excellent separation of suspended solids
- Separation of hard to settle solids
- Options for different sq. ft. of projected plate surface area
- Vent Port, Sump Drain, Cleanout Port
- Incorporated Sludge Hopper with Manual Drain
- Individual removable polypropylene or stainless steel plates
- Complete shop assembly
- Inspection hatch
| Available Options | ||
|---|---|---|
|
Optional Aluminum Construction |
||
|
Access Platform and Ladder |
||
|
High Level Float Alarm |
||
|
Custom Integration Into New or Existing Systems |
||
|
Field Installation, Startup and Operations Services |
||
Description
PRM Plate Clarifiers utilize Bernoulli’s Principal to provide high efficient fluid separation with low maintenance that can operate as a standalone system or used with integrated packages.
These industrial-duty units are designed for flow rates from 1 to 100 GPM. PRM clarifiers are manufactured using heavy gauge 304 stainless steel.
