Landfill Gas Equipment
Complete systems for landfill gas collection, treatment, control, and energy recovery. Extraction blowers, flare systems, leachate pumps, and SCADA all designed and built in one place.
How Landfill Gas Is Generated
As the U.S. population consumes goods, significant amounts of waste accumulate in landfill cells, much of it organic. In the anaerobic environment of a landfill, bacteria thrive and break down these materials, producing methane gas while leachate liquids accumulate at the bottom of the cell.
PRM offers solutions to manage these liquids and gases. Leachate and condensate are removed for treatment and disposal, freeing up space for continued gas generation. The collected gases are either flared off where required or directed to gas-to-energy co-generation systems.
Managing this gas correctly is a regulatory requirement and, increasingly, a revenue opportunity through Renewable Natural Gas (RNG) and carbon credit programs.
Gas Destruction
Flare systems achieving up to 98–99% methane destruction efficiency
Energy Recovery
Gas-to-energy and RNG pre-treatment for co-generation and pipeline injection
Gas Extraction
Blower skids creating negative pressure to collect gas from the well field
Leachate Control
Electric and pneumatic pumps removing liquids from wells and condensate sumps
Complete LFG Equipment Line
Every component of a landfill gas system, manufactured and integrated in-house from our facility in Butner, NC.
Flare Systems
Utility (candlestick) and enclosed flare designs from 50 to 10,000 SCFM. NFPA 86 compliant, proprietary pilot burner, 10:1 or greater turndown. Rental systems available.
Learn More
Gas Extraction Blowers
Single or multi-blower skids from 25 to 10,000+ SCFM. Creates negative pressure in the well field to transfer gas to flare station or co-generation engine. Gardner-Denver, Lamson, Continental, and AMETEK Rotron.
Learn More
Blower Packages
Bare blower units and complete packages from all major manufacturers: Eurus, Roots, Gardner-Denver, Tuthill, Rotron, Gast, Airtech, and more. Five types: positive displacement, centrifugal, regenerative, multi-stage, and liquid ring.
Learn More
Gas Flow Instrumentation
Continuous, fixed-position landfill gas analyzers measuring CH4, CO2, O2, and temperature. Siemens ULTRAMAT integration and Landtec GEM portable analyzers for greenhouse gas destruction verification.
Learn More

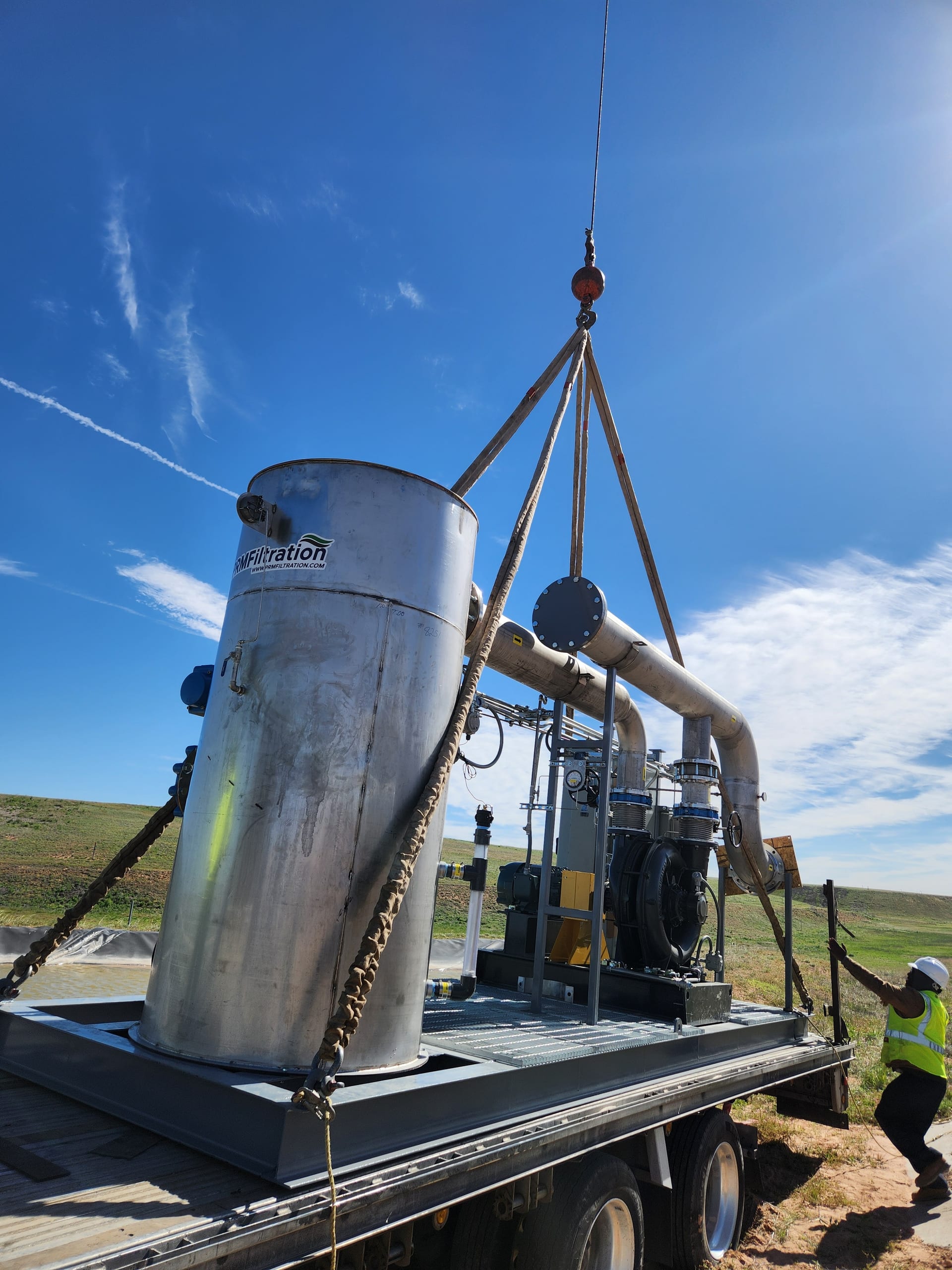

Landfill Gas Filtration
Particulate and moisture removal to protect downstream co-generation equipment. Siloxane reduction and monitoring, BioGas filtration and dehydration at 500–10,000 CFM. Pre-treatment for blower stations and gas utilization systems.
Learn More
Landfill Pumps
Three pump technologies for leachate and condensate management: Electric ESS/EVS (to 500 GPM), SRX Pneumatic (vertical leachate wells and condensate sumps), and PumpOne (extreme corrosion and temperature resistance).
Learn More
Moisture Separators
Tangential inlet design removes water droplets from gas streams before blowers. Six models from 200–1,800 SCFM in stainless steel, coated carbon steel, or HDPE. 25+ years of manufacturing experience.
Learn More
Control Panels & SCADA
UL 508A/698A certified panels with integrated SCADA for remote monitoring and control. Class 1 Div 2 rated for hazardous locations. PRM Pass multi-site login, telemetry, and alarm notifications.
Learn MoreFlare System Options
PRM manufactures both utility and enclosed flare designs, plus rental systems for pilot testing before permanent installation.
Utility / Candlestick Flares
- 50 to 10,000 SCFM capacity
- Greater than 98% destruction efficiency
- Built to EPA 40CFR 60.18 and AP-42
- Windshield design for weather stability
- Thermocouple and UV scanner monitoring
Best for: Municipal landfills, solid waste facilities burning excess biogas
Enclosed Flares
- Greater than 99% destruction efficiency
- Insulation-lined vertical combustion chamber
- Concealed flame for aesthetics and safety
- Sampling ports to confirm destruction
- Staged burners for strict NOx compliance
Best for: Carbon credit optimization, strict compliance sites, aesthetically sensitive locations
Rental Flare Systems
PRM has flare skid systems available for short or long-term rental. A rental system allows a pilot test to establish the flow capacity of the landfill before committing to a permanent installation.
- Complete system: blower skid, knockout tank, and controls
- Short or long-term lease terms available
- 100+ rental systems currently deployed nationwide
Applications & System Capabilities
Initial gas extraction through destruction or energy recovery, plus everything in between.
Gas Collection & Extraction
- Active extraction blower skids with moisture separation
- Negative pressure well field management
- Multiple blower configurations for turndown and redundancy
- Leachate and condensate removal with electric and pneumatic pumps
Gas Treatment & Conditioning
- Particulate and moisture filtration to protect downstream equipment
- Siloxane reduction for co-generation engine protection
- BioGas dehydration for gas utilization systems
- Gas quality monitoring: CH4, CO2, O2, temperature
Monitoring & Compliance
- Siemens ULTRAMAT fixed gas analyzers for greenhouse gas verification
- Landtec GEM portable analyzers for field well monitoring
- SCADA with EPA reporting data logging and alarm notifications
- Carbon credit calculation support from gas composition data
Energy Recovery (RNG)
- Pre-treatment for gas-to-energy co-generation systems
- Contingency flare for excess gas when co-gen is offline
- Gas quality monitoring for pipeline injection qualification
- Complete system integration from wellhead to energy point
Proven Project Experience
Successful landfill gas installations across North America
Lubbock, TX
12' diameter, 30' high candlestick flare on a 10'×20' steel framed skid for municipal landfill gas destruction
WO-8251 • Utility Flare
Vancouver, BC
9' diameter, 41' high enclosed landfill gas flare with 6,000 CFM purge blower and complete gas extraction skid
WO-3471 • Enclosed Flare
Page County, VA
500 CFM biogas flare with 10:1 turndown, UL-listed Siemens S1200 PLC, Class 1 Div 2 wiring, and telemetry
WO-5504 • Utility Flare
Certifications & Standards
Built to the regulations that govern landfill gas operations
NFPA 86
Combustion system compliance for all flare designs
EPA 40CFR 60.18
Destruction efficiency standards for utility flares
UL 508A & 698A
Certified control panels for hazardous locations
Class 1 Division 2
Wiring and electrical rated for explosive atmospheres
Ready to Discuss Your Landfill Gas Project?
Tell us your site conditions and goals. We'll spec the equipment, from extraction through flaring or co-generation. Rental options available for pilot testing.
